link1000.5plus

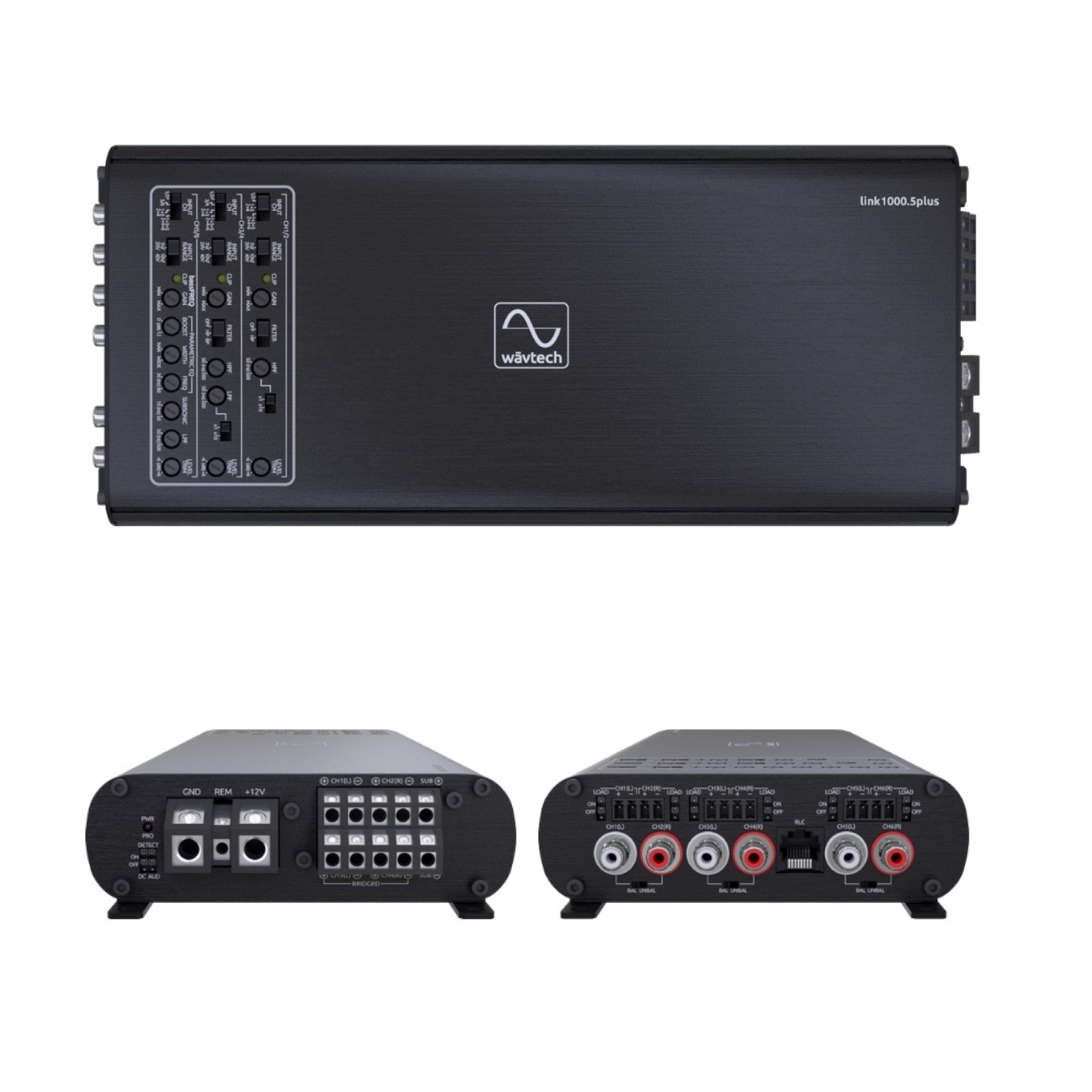

The link1000.5plus is the perfect complete system amplifier. One of the drawbacks of most 5-channel amplifiers is that while there is usually enough power for the front and rear main speakers, the power left over of the subwoofer is limited. Not so with the link1000.5plus. Channel 5 produces a robust 500 watts RMS @ 2 ohms, enough for most subwoofer systems. Like all Wāvtech amplifiers, the link1000.5mini has built-in adaptive loading and can accept up the 40V of input.
The link1000.5mini features built-in summing for up to 6-channels of input, so you won’t need to purchase an external processor in applications where a full range signal is not present. Like all Wāvtech amplifiers, it is compatible with Start/Stop systems. It also features 12dB per octave crossover on the 4 main channels and Wāvtech’s proprietary bassFREQ preamp with 24dB crossover and subsonic filter on the mono channel. The optional linkRC can be used to control the level of the subwoofer from the front of the vehicle.
CLICK HERE FOR OPERATION MANUAL
The link1000.5plus is the perfect complete system amplifier. One of the drawbacks of most 5-channel amplifiers is that while there is usually enough power for the front and rear main speakers, the power left over of the subwoofer is limited. Not so with the link1000.5plus. Channel 5 produces a robust 500 watts RMS @ 2 ohms, enough for most subwoofer systems. Like all Wāvtech amplifiers, the link1000.5mini has built-in adaptive loading and can accept up the 40V of input.
The link1000.5mini features built-in summing for up to 6-channels of input, so you won’t need to purchase an external processor in applications where a full range signal is not present. Like all Wāvtech amplifiers, it is compatible with Start/Stop systems. It also features 12dB per octave crossover on the 4 main channels and Wāvtech’s proprietary bassFREQ preamp with 24dB crossover and subsonic filter on the mono channel. The optional linkRC can be used to control the level of the subwoofer from the front of the vehicle.
CLICK HERE FOR OPERATION MANUAL
The link1000.5plus is the perfect complete system amplifier. One of the drawbacks of most 5-channel amplifiers is that while there is usually enough power for the front and rear main speakers, the power left over of the subwoofer is limited. Not so with the link1000.5plus. Channel 5 produces a robust 500 watts RMS @ 2 ohms, enough for most subwoofer systems. Like all Wāvtech amplifiers, the link1000.5mini has built-in adaptive loading and can accept up the 40V of input.
The link1000.5mini features built-in summing for up to 6-channels of input, so you won’t need to purchase an external processor in applications where a full range signal is not present. Like all Wāvtech amplifiers, it is compatible with Start/Stop systems. It also features 12dB per octave crossover on the 4 main channels and Wāvtech’s proprietary bassFREQ preamp with 24dB crossover and subsonic filter on the mono channel. The optional linkRC can be used to control the level of the subwoofer from the front of the vehicle.
CLICK HERE FOR OPERATION MANUAL
link1000.5plus Features
1000 Watt 5-Channel Amplifier
Main Channels
75 watts x 4 @ 4 ohms
125 watts x 4 @ 2 ohms
250 watts x 2 @ 4 ohms BTL
Subwoofer Channel
300 watts x 1 @ 4 ohms
500 watts x 1 @ 2 ohms
Small Footprint Only 11.9”x5.5”x1.65”
Variable HP Crossover (-12dB/oct) with 1x/10x CH1/2
Variable HP/BP/LP Crossover (-12dB/oct) CH3/4
Variable Low-Pass Crossover (-24dB/oct) CH5
Variable Subsonic Filter (-24dB/oct) CH5
Adjustable Parametric EQ CH5
Remote Level Control (RLC) w/Optional linkRC
bassFREQ Bass Processor w/Parametic EQ CH5
Active Thermal Management
Start/Stop System Compatible
Adaptive OEM Load Technology
40V Input Capability
Differential Balanced Inputs
Variable Gain Adjustment w/Clip LED
Auto Turn-On via DC-Offset or Audio Signal Detect
Adaptive OEM Load Technology
Locking Detachable Hi-Level Speaker Terminals
Professional Grade Panel Mount RCA’s
Compact Aluminum Chassis w/Detachable Mounting tabs
