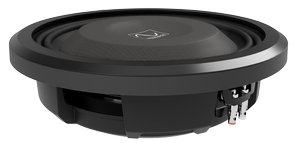

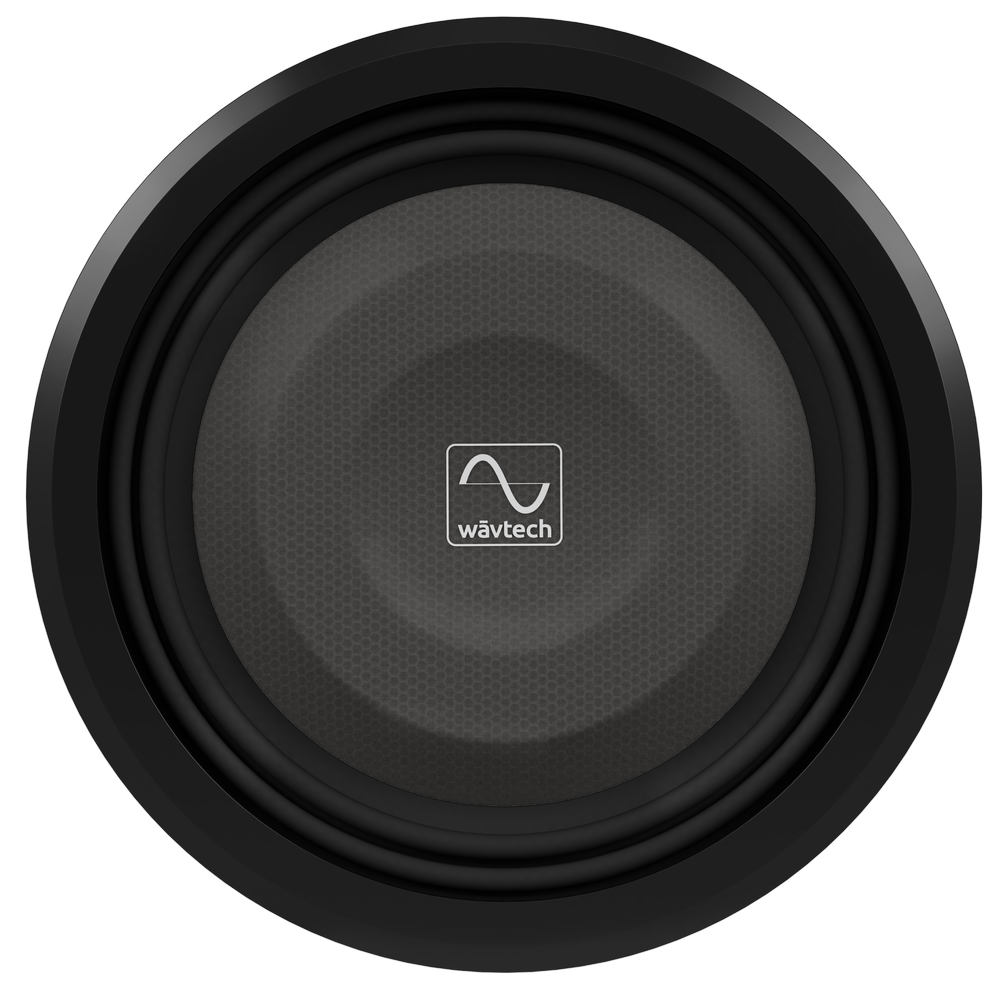

thinPRO12

12” Professional Series Shallow Subwoofer

When space is limited, it can be challenging trying to find a place to put a subwoofer. Over the years, there have been shallow options available, but there is always some sort of compromise. The truth is, if space wasn’t limited, you’d never choose a shallow subwoofer. Until now!

The thinPRO12 has a mounting depth of just 3”, so it is really thin, but it does not perform like a shallow subwoofer. Our Patent Pending design allows for some big performance advantages. The dual mirrored NBR spiders and axial force transfer assembly acheive over 2-inches of peak to peak excursion. Some popular models that are 10” deep don’t have this much excursion. This is unheard of in a shallow subwoofer.

The FEA optimized dual gap motor structure features a massive motor with double stacked strontium magnets. This maximizes flux density and control for an impressive 20mm of linear xmax. The honeycomb cone is made of a composite Nomex® and glass fiber, making it incredibly rigid and very lightweight. The 5” voice coil, available in 2 or 4 ohm, provides a powerful moving force with 750W RMS power handling.

A shallow subwoofer isn’t much good if it doesn’t perform in a small enclosure. The thinPRO12 excels in both small sealed and ported enclosures. In sealed applications, box sizes range from 0.4-1.0cu ft, with the optimum being 0.6cu ft. Ported options range from 0.8-1.5cu ft, with 1.0cu ft being the ideal choice.

thinPRO12 Features

  • 750 Watts RMS Power Handling

  • 3” Mounting Depth

  • 5” Voice Coil

  • 4-Layer Winding on Vented Polymide Composite Former

  • Protective Grille (TP12G Sold Separately)

  • Honeycomb Nomex® and Glass Fiber Cone

  • FEA Optimized Dual-Gap Motor Structure

  • Double-Roll NBR Surround

  • Mirrored Internal NBR Spiders

  • 8AWG Push Terminals

  • Vented Cast Aluminum Frame

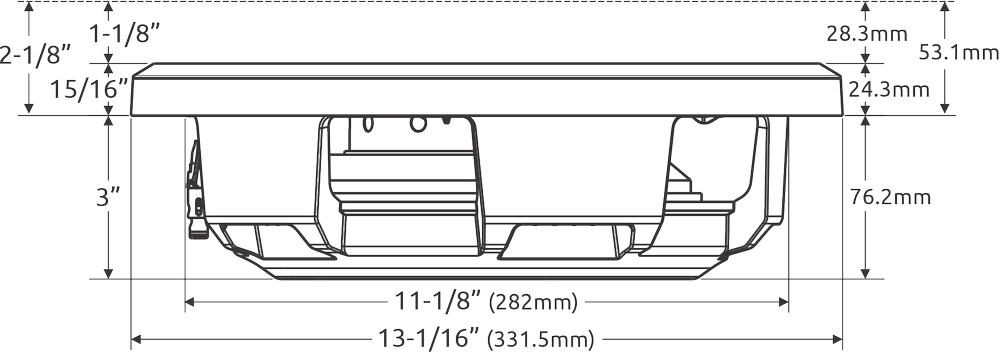

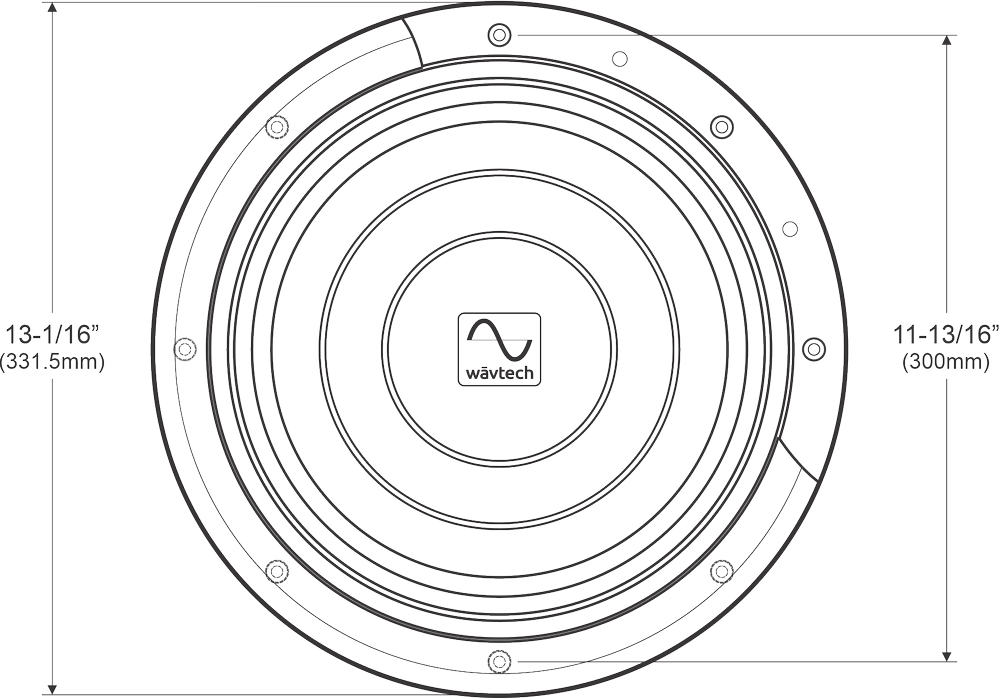

  • Dimensions: 11 1/8in (282mm) Standard 12” cutout
