Understanding the Differences:
High-Level Inputs vs. RCA vs. Toslink vs. Digital RCA in Car Audio
Building the perfect car audio system requires more than just picking the right speakers and amplifiers; understanding the type of signal connections you use is equally important. High-level inputs, RCA inputs, Toslink, and digital RCA inputs each offer unique advantages and challenges. This blog will break down each type, explain when to use them, and incorporate essential insights into the differences between digital and analog cables.
High-Level Inputs (Speaker-Level Inputs)
High-level inputs are designed to connect directly to the speaker outputs of your factory or aftermarket head unit. They take the amplified signal and convert it for use with an aftermarket amplifier or DSP.
Advantages:
Ease of Integration: They’re perfect for retaining a factory head unit when no RCA (preamp) outputs are available.
Signal Compatibility: Modern DSPs can effectively handle high-level signals, maintaining sound quality while integrating seamlessly into factory setups.
Disadvantages:
Noise Potential: High-level inputs can sometimes introduce noise or distortion if the signal isn’t processed correctly.
Quality Limitation: The quality may be slightly lower compared to other input types due to the signal already being amplified.
Conductor: Oxygen-free copper offers excellent conductivity, which minimizes resistance and reduces signal loss. This makes it a top choice for maintaining high sound quality, especially over longer runs.
Sound Performance: OFC is preferred in high-fidelity audio applications because it carries signals with minimal distortion or degradation. In high-level audio, this translates to clearer, crisper sound reproduction with less risk of signal interference.
Best for Sound Quality:
14 AWG OFC Wire—It ensures the least resistance, minimal signal degradation, and the best overall performance over a long distance.
Acceptable Compromise: 16 AWG OFC Wire—If space is a concern, it offers a balance between maintaining sound quality and ease of installation.
Not Recommended for High-Level Signals Over 20 Feet: 18 AWG Wire—Due to its higher resistance and potential for signal loss. We offer Speedwire for a fast and clean installation, integrating the OEM factory system head units with aftermarket amplifiers.
14 AWG OFC wire is the recommended choice for the best results and to maintain the highest sound quality, especially for a high-level input signal over a 20-foot run.
Line Output Converter (LOC) works with high-level inputs by converting the amplified signal from a factory or aftermarket head unit’s speaker outputs into a low-level RCA signal suitable for an aftermarket amplifier or DSP. It steps down the high-voltage signal to a safe level while filtering out the noise, enabling seamless integration of aftermarket components without replacing the factory head unit.
Most newer aftermarket amplifiers now have LOCs built in; however, it’s crucial to understand the input rating, as many newer OEM amplified vehicles require LOCs with much higher capabilities. Wavtech offers one of the highest-rated LOCs on the market, designed to work with almost any application, ensuring compatibility and performance even with advanced OEM systems. You can learn more about LOC’s HERE
2. RCA Inputs (Low-Level Inputs)
RCA inputs, commonly referred to as low-level inputs, transmit an unamplified analog signal from the head unit to the amplifier. These cables are the industry standard for most aftermarket audio installations.
Advantages:
Cleaner Signal Transmission: RCA cables handle an unamplified signal, so they typically provide better sound quality than high-level inputs.
Widespread Compatibility: Many head units and amplifiers are designed with RCA inputs, making them a versatile and standard choice in car audio setups.
Disadvantages:
Signal Loss Over Distance: RCA cables can experience signal degradation over longer distances, making it important to use high-quality cables.
Susceptibility to Interference: If not properly shielded, RCA cables can pick up noise from other electrical components.

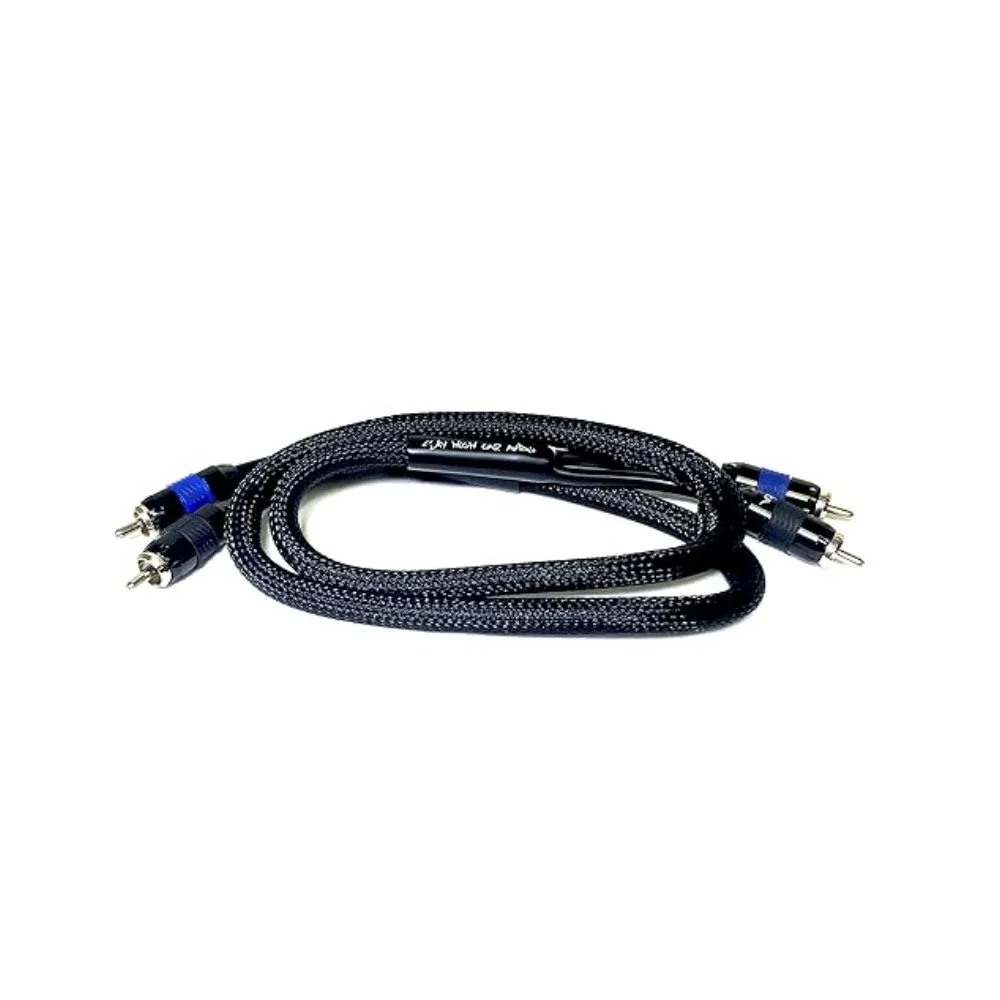

Affordable yet good quality RCA cables like the Sky High Car Audio models work great without breaking the bank.
If you want to ensure the best quality and choose to build your own, look for bulk cable with a solid copper core and good shielding, such as Belden 1505F or Canare L-4E6S. These cables provide excellent conductivity and noise rejection. Then, Select the style of end that works best for your application.
Digital vs. Analog Cables: How They Work
Before diving into Toslink and digital RCA inputs, let’s explore the fundamental differences between analog and digital signals and how they perform in cables:
Analog Signals represent information as a continuous waveform. For example, a 1000 Hertz tone would create a smooth sine wave pattern in an analog signal. Traditional RCA cables and high-level inputs transmit these continuous waveforms, which makes them susceptible to gradual degradation from noise and interference.
Digital Signals, on the other hand, transmit information as a series of binary data ("1" and "0"). The sharp transitions that make up these signals, known as square waves, allow for cleaner and more robust signal transmission as long as the receiving device can accurately interpret the transitions.
Despite these differences, digital and analog signals both move electrons through cables, and the cables must be optimized for their respective signal types. Digital cables are designed with precision to maintain impedance and minimize signal loss, especially as frequencies increase.
3. Toslink (Optical Digital Audio Input)
Toslink cables use light rather than electrical signals to transmit digital audio, offering an interference-free connection between components such as head units, amplifiers, and DSPs.
Advantages:
Immunity to Electromagnetic Interference: Since Toslink uses light, it is unaffected by electrical noise, making it an excellent option for maintaining signal integrity.
High-Quality Signal Transmission: Toslink provides a pure digital path that preserves the audio quality.
Disadvantages:
Fragility: Toslink cables are more delicate and can be easily damaged if bent too sharply.
Limited Compatibility: Not all car audio systems support Toslink connections, so it may not always be an option.
When using Toslink, optical quality and durability are key.
Suggested Cable: AudioQuest Forest Toslink Cable or Monoprice Premium Toslink Cable
Reasoning: Both cables feature high-quality fiber optics for precise and interference-free digital audio transmission. AudioQuest’s offering includes flexible insulation for durability, while Monoprice is a budget-friendly, reliable option that ensures good optical clarity.
4. Digital RCA (Coaxial Digital Input)
Digital RCA inputs transmit audio digitally using coaxial cables. These cables are engineered to maintain the integrity of the digital signal, ensuring high-quality audio.
Advantages:
Compatibility: Many high-end car audio components support digital RCA inputs, making them a flexible option for digital audio transmission.
High Audio Fidelity: Digital RCA preserves the digital nature of the audio signal, offering superior sound quality.
Disadvantages:
Interference Potential: Unlike Toslink, digital RCA can be affected by electromagnetic interference, potentially degrading the signal.
Less Common in Car Audio: While popular in home audio, finding car audio components that support digital RCA might be more challenging.
For digital RCA connections, a well-shielded coaxial cable designed for digital signals is recommended:
Suggested Cable: Belden 1694A Coaxial Cable or AudioQuest Carbon Coaxial Digital Cable
Reasoning: Belden 1694A is a broadcast industry standard designed for maintaining a precise 75-ohm impedance with minimal signal loss over long distances. AudioQuest Carbon offers a high-end option with silver-plated conductors for excellent signal clarity and precise impedance control.
S/PDIF: What It Is & S/PDIF Alternatives
S/PDIF (Sony/Philips Digital Interface Format) is a protocol used to transmit digital audio. It can be sent over Toslink (optical) or digital RCA (coaxial) cables, maintaining the digital signal’s integrity and quality throughout the audio system.
How Digital Signals Degrade:
Digital signals are prone to waveform degradation due to factors like impedance mismatch and cable capacitance. As the frequency and bitrate increase, maintaining a clear signal becomes more challenging, making the choice of cable crucial. High-precision cables are essential to minimize issues such as signal reflections and jitter.
Threshold Effect: Unlike analog signals, which degrade gradually, digital signals often maintain perfect quality until a certain point, after which they can fail completely if the signal integrity is compromised.
Choosing the Right Input for Your System
High-Level Inputs: Ideal for factory integration but may compromise quality.
RCA Inputs: A versatile and standard option for most aftermarket setups, offering good sound quality but susceptible to noise over long runs.
Toslink: Perfect for interference-free, high-fidelity audio.
Digital RCA: A good digital connection with high audio quality but less common in car audio setups.
Understanding Cable Selection for Digital and Analog Signals
Cables designed for digital signals are optimized for maintaining precise impedance and minimizing signal loss, while analog cables are traditionally more flexible with tolerances. However, modern advancements mean that using a high-quality digital cable, even in analog applications, can often yield superior results. For car audio enthusiasts, investing in the right cable type—whether it’s digital or analog—ensures that your system performs at its best, delivering crisp, clear sound with minimal interference.
